Zabbix Agent Active vs Passive: What They Mean and When to Use Each

TL;DR

• Passive: Zabbix Server pulls from the agent on 10050/TCP (inbound to the host).
• Active: The agent pushes to Server by connecting to 10051/TCP (outbound from the host).
• If your Zabbix lives on a corporate/home network and you monitor internet hosts, prefer Active to avoid opening inbound ports on those hosts.

How Active Works

• Direction: agent → server :10051 (outbound).
• Flow: the agent connects and matches host name (optionally authenticates with TLS), downloads an active item list (based on the host name), schedules checks locally, and batches results back.
• Refresh: the agent refreshes the list periodically (default ~120 s).
• Great for: hosts behind NAT/firewalls, large fleets (lighter on server pollers), and log monitoring (log[], logrt[], Windows eventlog[]), which requires Active.

How Passive Works

• Direction: server → agent :10050 (inbound).
• Flow: server pollers dial the agent to retrieve values on demand.
• Great for: quick ad-hoc testing with zabbix_get, certain long-running custom checks you prefer to pull.

Quick Comparison

Typical Topologies

Active (recommended for internet/cloud VMs)

[Monitored Host: zabbix-agent2]
        |  outbound TCP 10051
        v
 [Zabbix Server]

Passive (classic on LAN/VPN)

[Zabbix Server] --inbound 10050--> [Monitored Host: zabbix-agent2]

Minimal Active-Only Setup

Goal: a monitored host that doesn’t need to expose 10050/TCP. The agent only dials out to your server on 10051/TCP.

Scenario: The monitored host is an AWS EC2 instance in a private subnet with no public IP.

1. Install the agent (Ubuntu example)

2. Configure the agent

/etc/zabbix/zabbix_agent2.conf:

# Must exactly match the host name defined in the Zabbix frontend
Hostname=app.maksonlee.com

# Active target: your Zabbix Server
ServerActive=zabbix.maksonlee.com:10051

# Passive allowlist (irrelevant if you block/ignore 10050)
Server=127.0.0.1

Restart:

sudo systemctl restart zabbix-agent2

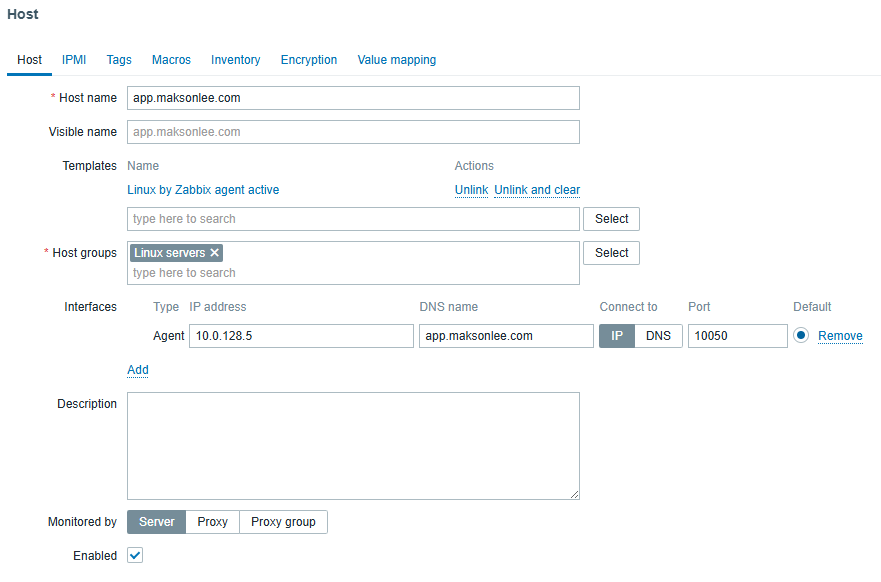

3. Frontend steps

• Create host named app.maksonlee.com (exactly matches Hostname=).
• Link an active template (e.g., Linux by Zabbix agent (active)).
• Agent interface IP/DNS: set a meaningful value for inventory/macros, but note that Active data flow doesn’t use it.

“Do I need a reachable Agent IP if I use Active?”

• No for data collection: Active doesn’t use the host’s “Agent interface” IP at all. The agent connects outbound to 10051 and pushes results.
• Yes for anything the server must reach: If templates use {HOST.IP} (maps, notifications) or you keep ICMP/web checks and the server can’t reach that address, those items will fail.

Two easy patterns:

• Pure Active: stick to active items only; don’t rely on {HOST.IP}.
• Macro-override targets: for ping/web checks, use macros instead of {HOST.IP}. Example:
  • Change icmpping → icmpping[{$PING_TARGET}]
  • Set {$PING_TARGET} on the host to a reachable public/VPN address.

When to Use Which

• Default to Active for hosts behind NAT/firewalls or on the public internet.
• Keep some Passive only if you need zabbix_get or server-initiated pulls.
