Zabbix 7.4 + Keycloak (SAML 2.0): End-to-End Setup with JIT Provisioning

By /

This guide connects Zabbix 7.4 at https://zabbix.maksonlee.com to Keycloak at https://keycloak.maksonlee.com (realm maksonlee.com) using SAML 2.0, and enables Just-in-Time (JIT) provisioning so users are created automatically on first login.

You’ll configure:

  • Keycloak: a SAML client + clean mappers via a dedicated client scope (username, email, groups)
  • Zabbix: SAML authentication + JIT provisioning (default role/groups)
  • Optional hardening: sign Zabbix AuthnRequests and require client signatures in Keycloak
  • File permissions hardening: keep private keys readable by Zabbix, but not writable by the web user

What we’ll build

  • Sign-in to Zabbix via Keycloak (SAML 2.0)
  • JIT user creation: on first login, Zabbix creates a normal user and assigns role + groups
  • Clean attribute delivery from Keycloak:
    • username
    • email
    • group list as multi-valued member
  • Optional security:
    • Zabbix signs AuthnRequests / Logout requests
    • Keycloak requires client signatures

Prerequisites

  • Zabbix 7.4 web frontend: https://zabbix.maksonlee.com
Install Zabbix on Ubuntu 24.04

  • Keycloak realm: maksonlee.com at https://keycloak.maksonlee.com
Install Keycloak with MariaDB and NGINX Reverse Proxy (SSL Termination)
  • Admin access to both
  • Shell access to the Zabbix server

Default SAML certificate paths (Zabbix frontend)

Unless overridden in ui/conf/zabbix.conf.php, Zabbix reads SAML material from:

  • ui/conf/certs/sp.key — SP private key (used when Zabbix signs AuthnRequest / Logout)
  • ui/conf/certs/sp.crt — SP certificate (public; import into Keycloak if you require client signatures)
  • ui/conf/certs/idp.crt — IdP certificate (Keycloak realm signing cert used to verify assertions)

On Ubuntu/Debian, that resolves to:

  • /usr/share/zabbix/ui/conf/certs/

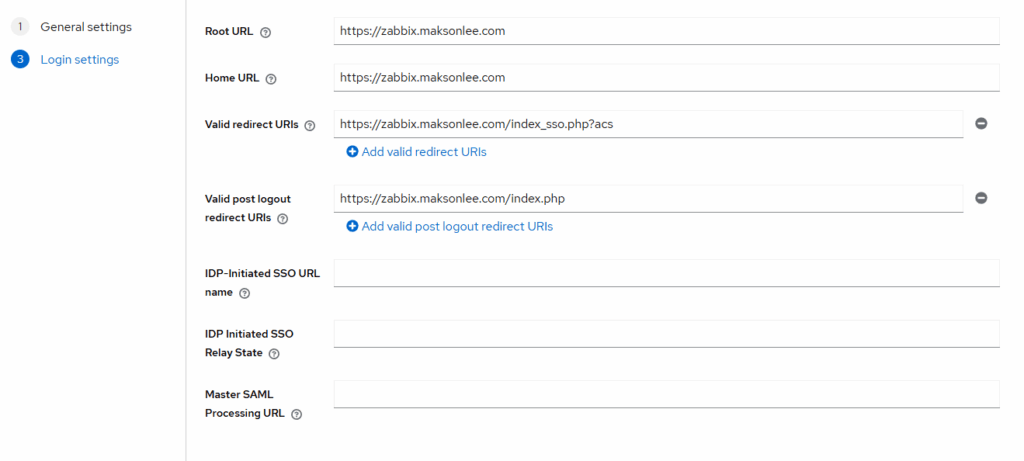

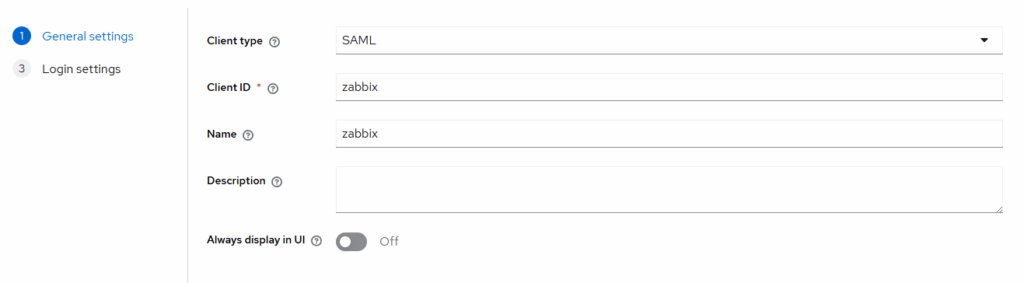

  1. Keycloak — create the SAML client

Clients → Create client

Settings:

  • Name ID format: transient
  • Sign Assertions: On
  • Force POST binding: Off

Advanced:

  • Logout Service Redirect Binding URL: https://zabbix.maksonlee.com/index_sso.php?sls
  1. Keycloak — add mappers via a dedicated client scope

Clients → zabbix → Client scopes

  • Create a scope (e.g. zabbix-dedicated) and assign it as Default to the zabbix client.
  • Inside that scope: Mappers → Add mapper — add these:
    • username
      • Mapper type: User Property
      • Name: username
      • Property: username
      • SAML Attribute Name: username
    • email
      • Mapper type: User Property
      • Name: email
      • Property: email
      • SAML Attribute Name: email
    • groups
      • Mapper type: Group list
      • Name: groups
      • Group attribute name: member

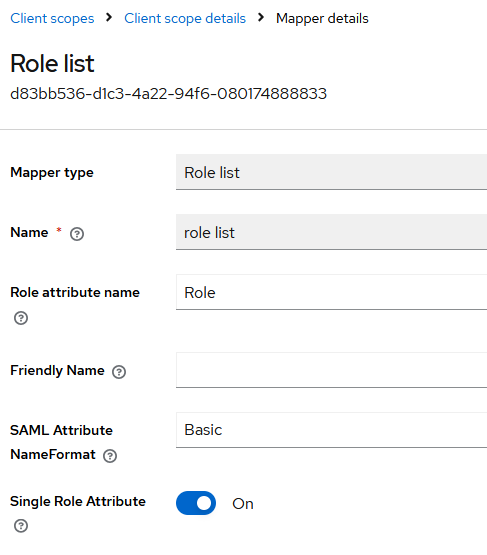

Client scopes → role_list → Mappers → role list

  • Single Role Attribute: On
  1. Zabbix — install the IdP signing certificate

Zabbix should verify Keycloak’s signed assertions with the realm’s signing cert.

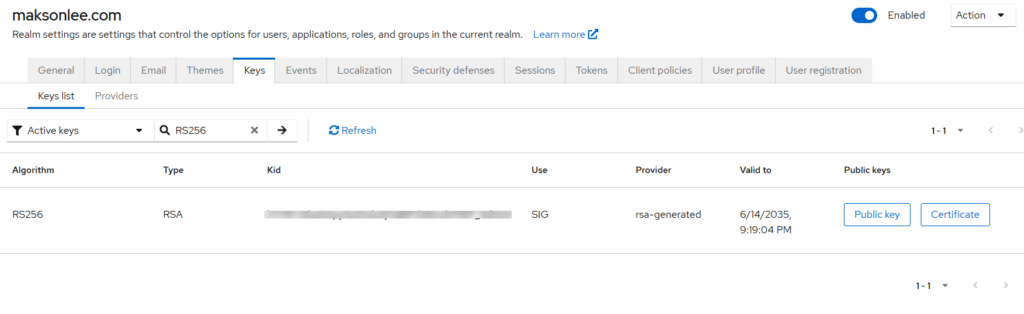

  • In Keycloak: Realm settings → Keys → Active → (RS256) → copy the Certificate (X.509 public).
  • On the Zabbix host:
sudo tee /usr/share/zabbix/ui/conf/certs/idp.crt >/dev/null <<'CRT'
-----BEGIN CERTIFICATE-----
# paste Keycloak realm signing certificate here
-----END CERTIFICATE-----
CRT
sudo chown -R www-data:www-data /usr/share/zabbix/ui/conf/certs
sudo chmod 644 /usr/share/zabbix/ui/conf/certs/idp.crt

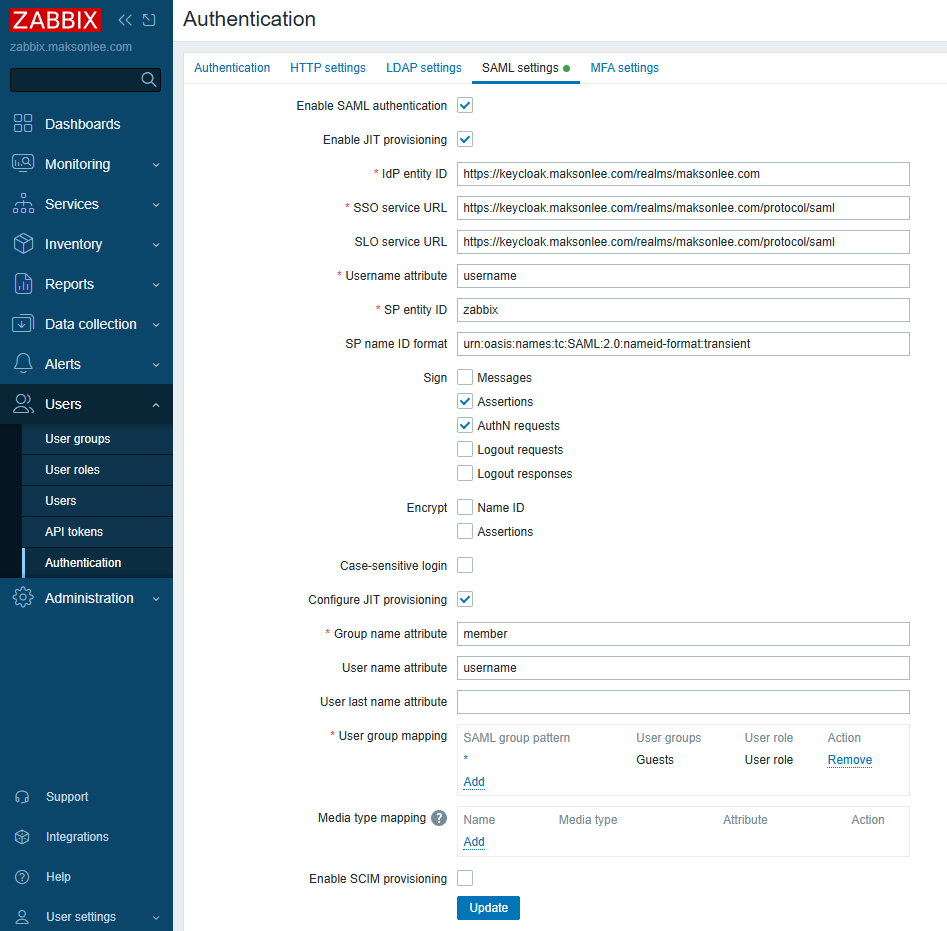

  1. Zabbix — configure SAML

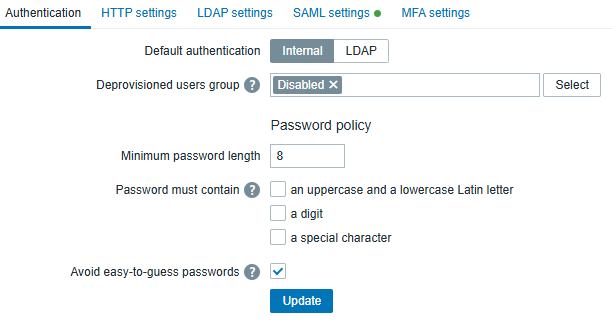

In Administration → Users → Authentication (top tab), set a Deprovisioned users group when JIT is enabled.

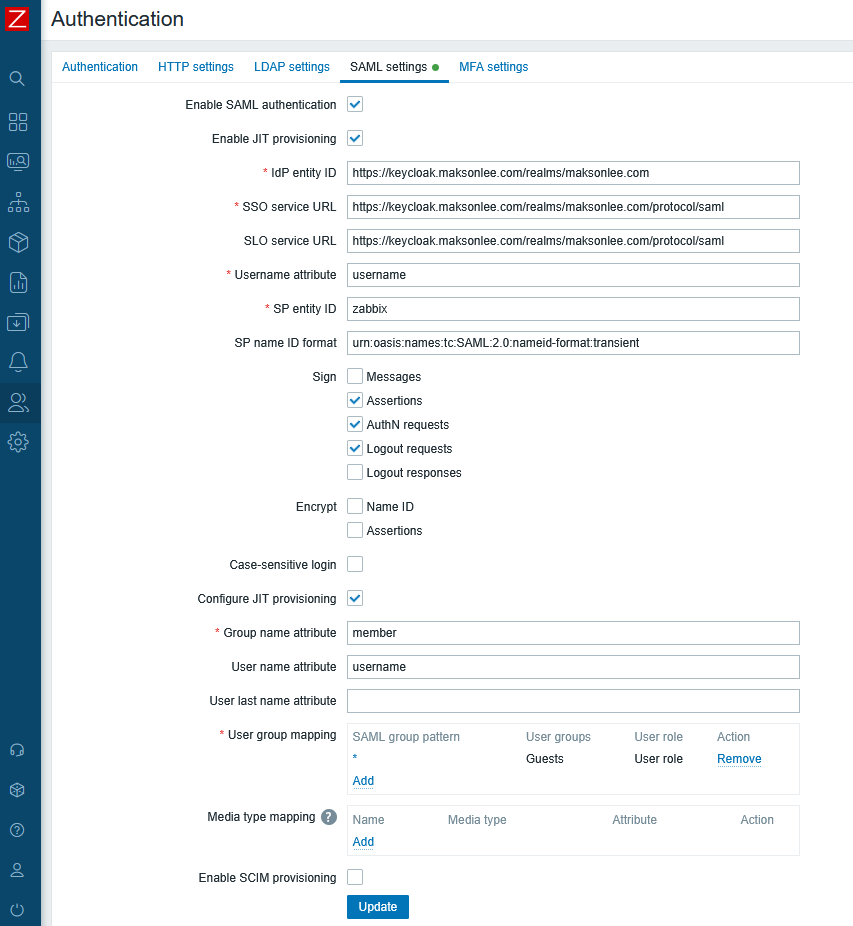

  1. Sign Zabbix AuthnRequests

Create the SP keypair at the default locations:

sudo openssl req -x509 -newkey rsa:2048 -nodes \
  -keyout /usr/share/zabbix/ui/conf/certs/sp.key \
  -out   /usr/share/zabbix/ui/conf/certs/sp.crt \
  -days 3650 -subj "/CN=zabbix.maksonlee.com"

sudo chown www-data:www-data /usr/share/zabbix/ui/conf/certs/sp.key /usr/share/zabbix/ui/conf/certs/sp.crt
sudo chmod 640 /usr/share/zabbix/ui/conf/certs/sp.key
sudo chmod 644 /usr/share/zabbix/ui/conf/certs/sp.crt

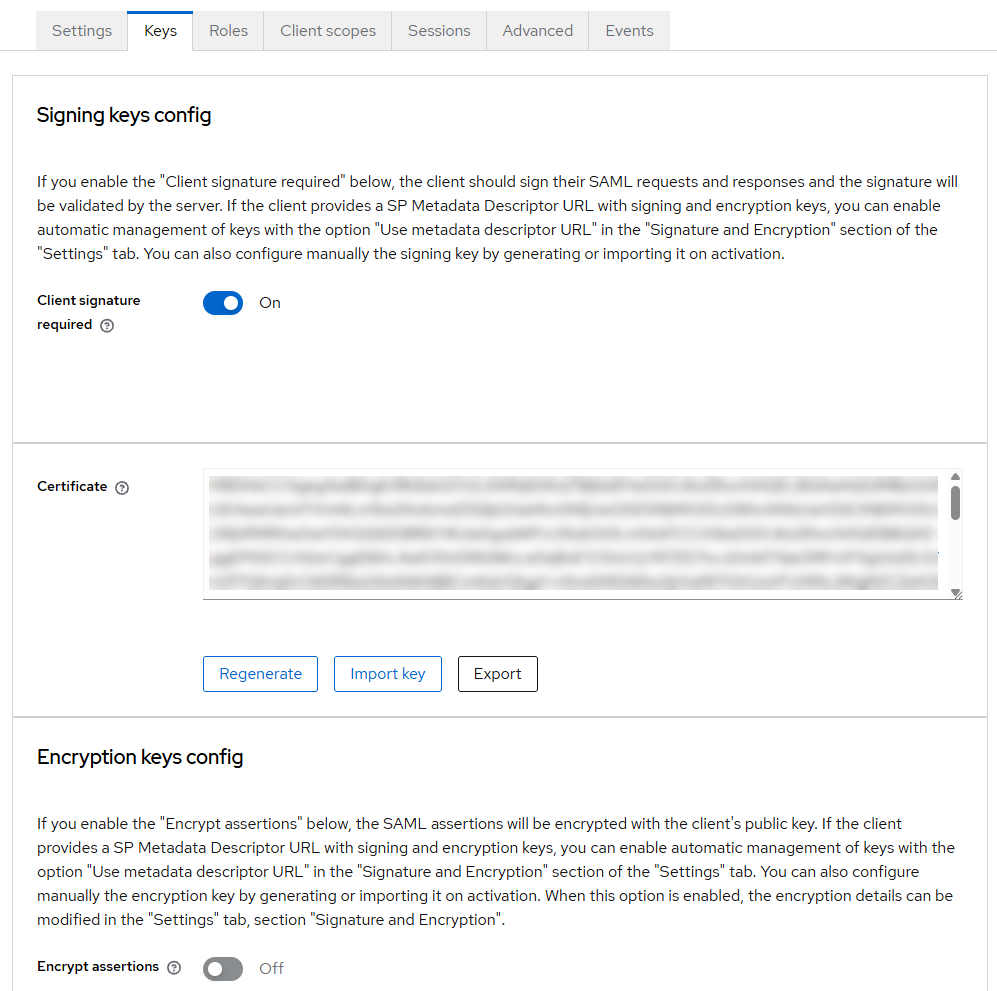

Keycloak → Clients → zabbix → Keys / Certificate: Import sp.crt

  1. Encrypt SAML assertions (optional)

If you enable Encrypt → Assertions in Zabbix (Administration → Users → Authentication → SAML settings), you must also enable Encrypt assertions in the Keycloak client.

Keycloak must encrypt using the SP public certificate (sp.crt) that matches the SP private key (sp.key) available on the Zabbix side.

Keycloak: enable encryption and import the SP certificate

In Keycloak → Clients → zabbix → Keys → Encryption keys config:

  • Turn Encrypt assertions = On
  • Import the SP certificate: sp.crt
    (You may reuse the same sp.crt you already imported for client signatures, as long as it matches sp.key.)

Keycloak: set compatible encryption parameters

In Keycloak → Clients → zabbix → Signature and Encryption, set (tested working):

  • Encryption algorithm: AES_256_GCM (or AES_256_CBC)
  • Key transport algorithm: RSA-OAEP-11
  • Digest method for RSA-OAEP: SHA-1
  • Mask generation function: mgf1sha1

Zabbix: enable assertion decryption

In Zabbix → Administration → Users → Authentication → SAML settings:

  • Under Encrypt, enable Assertions
    (Enable Name ID only if you also encrypt NameID on the Keycloak side.)

If these settings don’t match (especially the OAEP digest), Zabbix may fail to decrypt the assertion and you’ll see:

Failure decrypting Data (openssl private) … oaep decoding error

  1. Test SSO
  • Log out of Zabbix
  • Visit https://zabbix.maksonlee.com

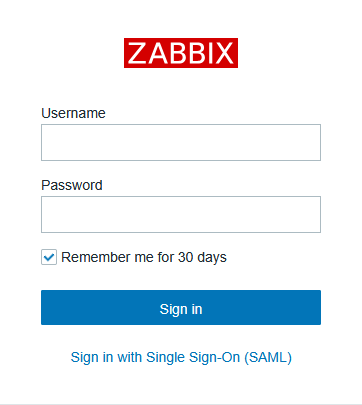

  • Click Sign in with Single Sign-On (SAML)

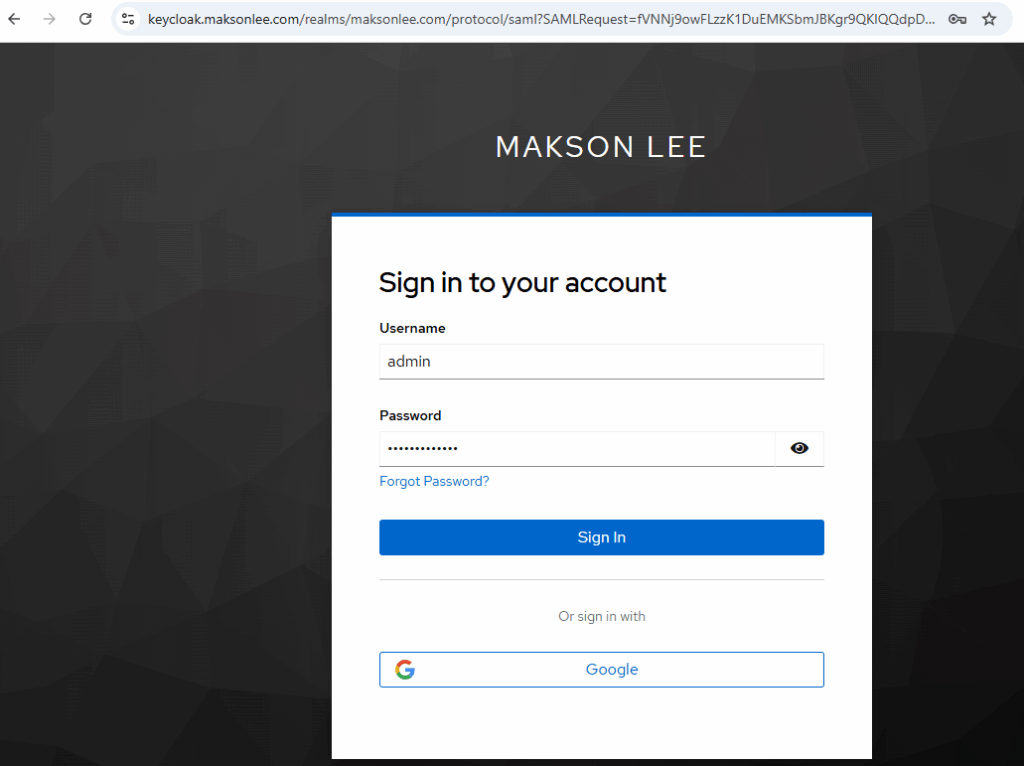

  • Authenticate at https://keycloak.maksonlee.com
  • On first login:
    • Zabbix auto-creates the user
    • assigns User role
    • assigns default groups + mapped groups (if enabled)
  • On later logins:
    • the same Zabbix account is reused
    • JIT does not “reset” an existing user

Docker note: cert directory + internal vs external ports (common SAML/Keycloak pitfalls)

When Zabbix runs in Docker, two things commonly differ from a bare-metal install and can break SAML:

  • The web container’s internal URL/port is not the same as the public URL/port that users and Keycloak access.
  • The default SAML cert directory can differ depending on the zabbix-web-* image/tag.

Force SAML to use the public HTTPS URL (not the container port)

If your container listens on 8080 but you publish/terminate HTTPS on 443 (or 8443), Keycloak validates exact ACS/Destination URLs. Zabbix must generate SAML URLs using the external address:

services:
  zabbix-web:
    environment:
      ZBX_SSO_SETTINGS: '{"strict":false,"baseurl":"https://zabbix-docker.maksonlee.com/"}'

Mount SAML certs into the correct directory (varies by image)

Two common cert paths inside the Zabbix web container are:

  • /etc/zabbix/web/certs
  • /usr/share/zabbix/ui/conf/certs

Mount your host cert folder to the path your container actually uses:

services:
  zabbix-web:
    volumes:
      # Option A (common):
      - /opt/zabbix-docker/saml-certs:/etc/zabbix/web/certs:ro

      # Option B (some images/layouts):
      # - /opt/zabbix-docker/saml-certs:/usr/share/zabbix/ui/conf/certs:ro

If you see “sp certs and idp certs missing and required”, Zabbix is not finding the SAML certificate files inside the web container—in Docker this is most commonly caused by mounting saml-certs to the wrong in-container path. Adjust the volume mount to the cert directory your image actually uses.
