Enable Keycloak SSO (OIDC + PKCE) for Argo CD

By /

This post shows how to enable Keycloak authentication for an existing Argo CD deployment using OIDC + PKCE, so you can log in using:

  • Argo CD Web UI (SSO)
  • Argo CD CLI (argocd login --sso)

PKCE is the recommended mode because it works cleanly for both UI and CLI.

This post is based on my Argo CD deployment posts:

Deploy Argo CD on Bare-Metal Kubernetes with Traefik + Wildcard HTTPS (Ubuntu 24.04)
Install Keycloak with MariaDB and NGINX Reverse Proxy (SSL Termination)

Lab context

Argo CD:

  • URL: https://argocd.maksonlee.com
  • Namespace: argocd
  • Exposed via Traefik
  • TLS terminated at Traefik using wildcard cert *.maksonlee.com
  • Argo CD server runs HTTP inside the cluster (server.insecure=true)

Keycloak:

  • URL: https://keycloak.maksonlee.com
  • Realm: maksonlee.com

Keycloak groups used by Argo CD:

  • argocd-admins
  • argocd-readonly

Argo CD RBAC behavior in this post:

  • Users in argocd-admins → admin
  • Users in argocd-readonly → readonly
  • Everyone else who can authenticate → readonly (via policy.default: role:readonly)

Keycloak users are not the same as Argo CD’s built-in local admin user. In this post, we grant permissions via Keycloak groups.

What you’ll build

  • Keycloak OIDC client for Argo CD (public client + PKCE S256)
  • Keycloak groups argocd-admins / argocd-readonly
  • Keycloak tokens include a groups claim
  • Argo CD configured for OIDC PKCE via argocd-cm
  • Argo CD RBAC mapping groups → roles via argocd-rbac-cm
  • Verification steps for read-only vs admin in CLI + UI

Prerequisites

  • Argo CD already works at https://argocd.maksonlee.com
  • You have kubectl access to the cluster
  • You can manage Keycloak realm maksonlee.com
  • Argo CD CLI installed on the admin machine (k8s-1 in my lab)
  1. Create the Keycloak client (OIDC + PKCE)

In Keycloak Admin Console:

  • Select realm: maksonlee.com
  • Go to Clients → Create client

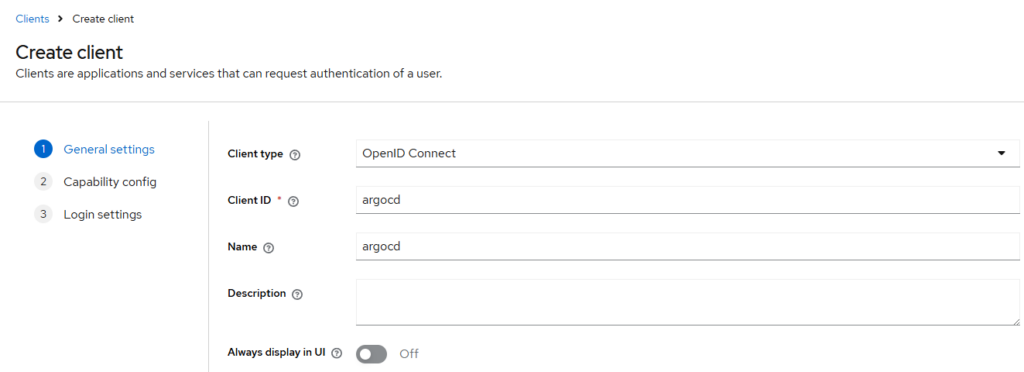

General settings

Set:

  • Client type: OpenID Connect
  • Client ID: argocd

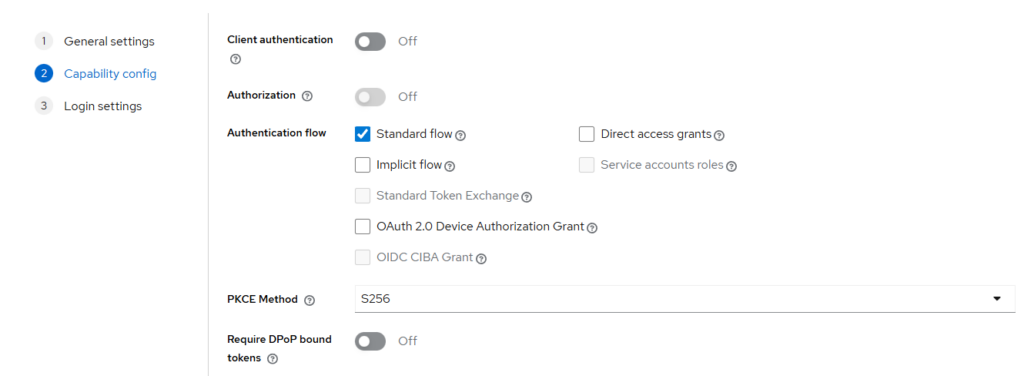

Capability config

Set:

  • Client authentication: Off (public client)
  • Standard flow: On
  • PKCE Method: S256
  • Keep these Off:
  • Authorization
  • Implicit flow
  • Direct access grants
  • Device Authorization Grant
  • CIBA

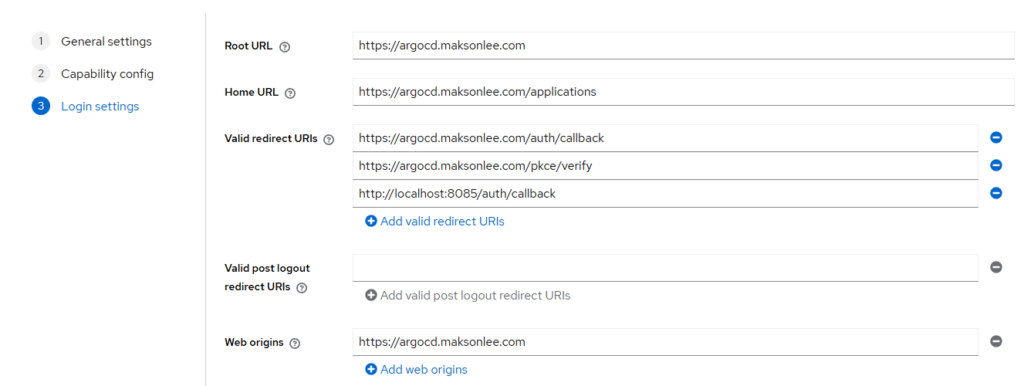

Login settings

  • Root URL: https://argocd.maksonlee.com
  • Home URL: https://argocd.maksonlee.com/applications
  • Valid redirect URIs (UI + CLI):
    • https://argocd.maksonlee.com/auth/callback
      https://argocd.maksonlee.com/pkce/verify
      http://localhost:8085/auth/callback
  • Valid post logout redirect URIs: https://argocd.maksonlee.com/applications
  • Web origins: https://argocd.maksonlee.com

Why localhost:8085?

When you run argocd login --sso, the Argo CD CLI starts a local callback server (default port 8085) to complete the SSO flow.

  1. Create Keycloak groups and add users

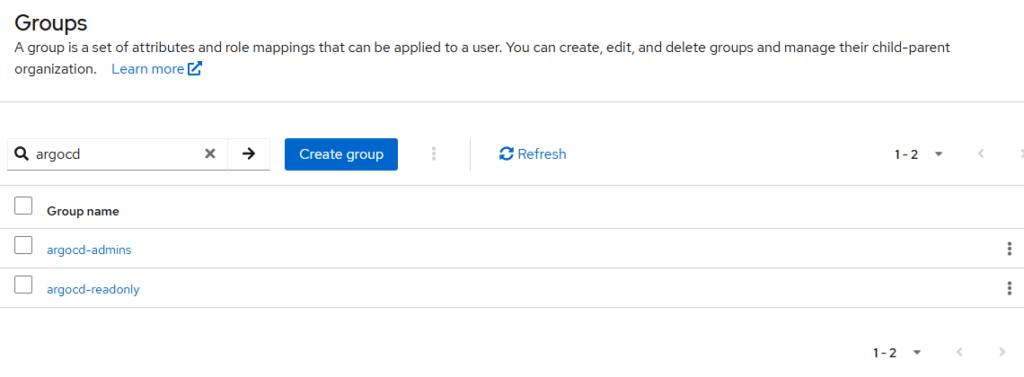

Create groups

In Keycloak:

  • Go to Groups
  • Create:
    • argocd-admins
    • argocd-readonly

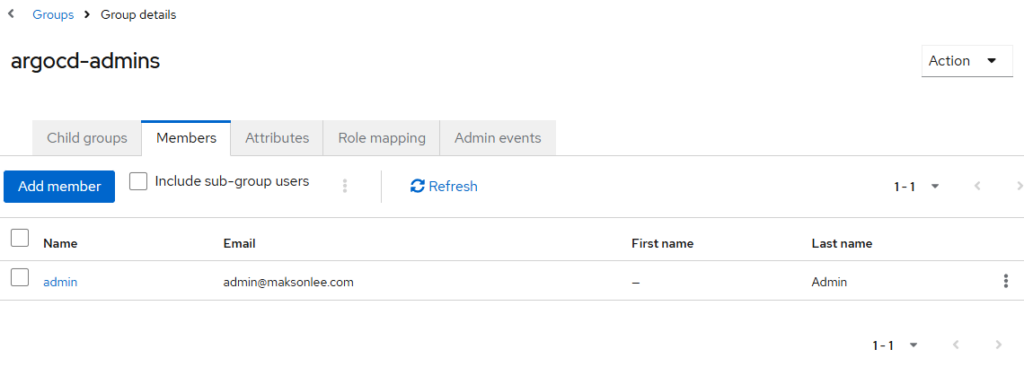

Add users to groups

  • Add at least one Keycloak user to argocd-admins (your admin SSO users)
  • Add any read-only users to argocd-readonly (optional)

In my lab I have users in normal groups like engineering / project-managers. That’s fine because we set policy.default: role:readonly later.

  1. Add groups claim into Keycloak tokens (Client Scope + Mapper)

Argo CD RBAC needs Keycloak to include group names in the token as:

"groups": ["argocd-admins"]

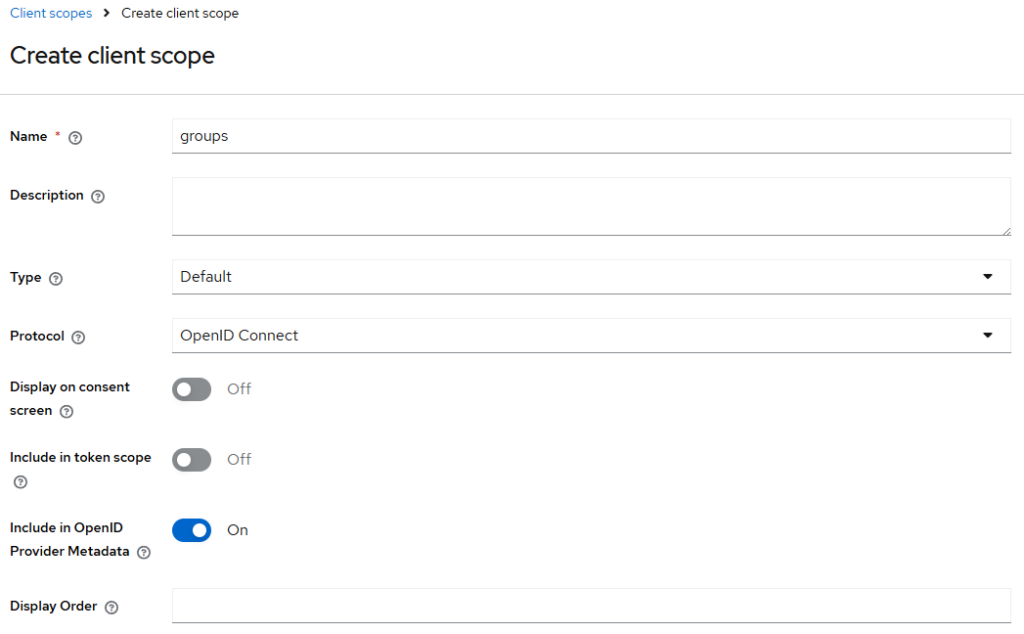

Create a client scope named groups

Go to Client scopes → Create client scope:

  • Name: groups
  • Display on consent screen: Off (recommended)

Save.

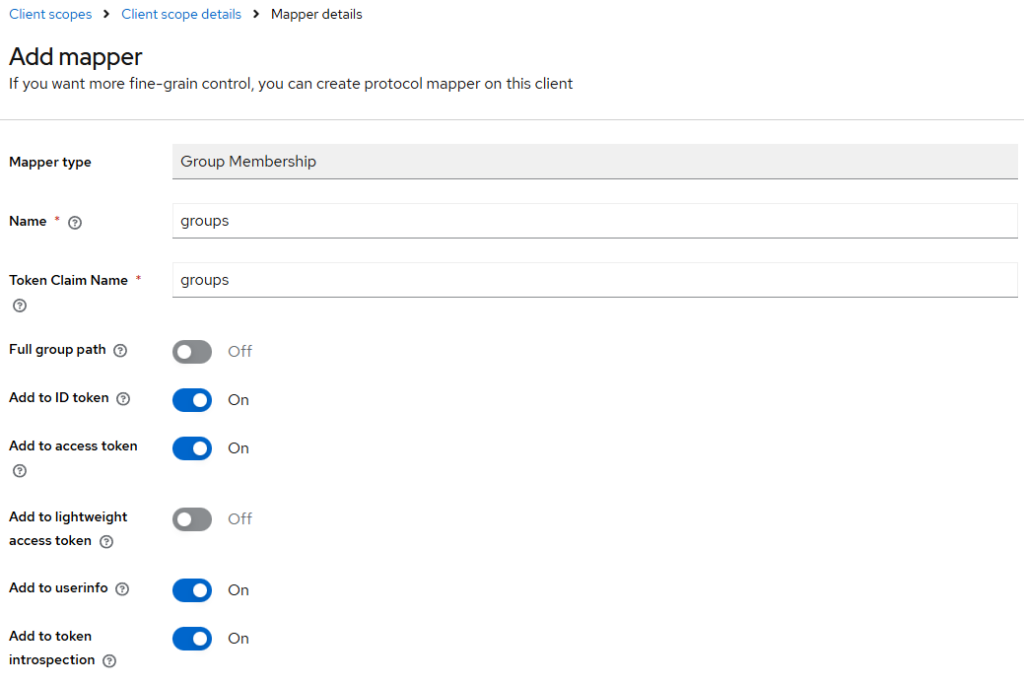

Add mapper: Group Membership

Go to:

  • Client scopes → groups → Mappers → Add mapper
  • Mapper type: Group Membership

Set:

  • Name: groups
  • Token Claim Name: groups
  • Full group path: Off
  • Add to ID token: On
  • Add to access token: On

Save.

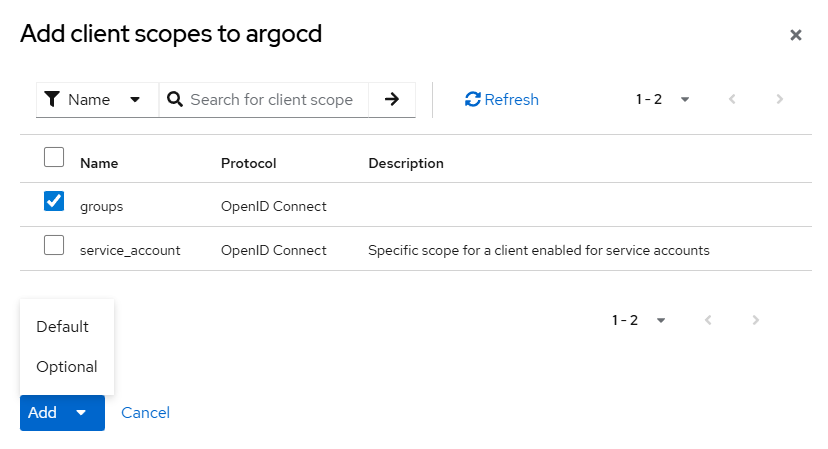

Attach groups scope to the argocd client as Default

Go to:

  • Clients → argocd → Client scopes → Add client scope
  • Select groups
  • Add as Default
  1. Configure Argo CD OIDC (PKCE) in argocd-cm

argocd-cm is Argo CD’s main ConfigMap for server settings (URL, SSO/OIDC, etc.).

Edit it:

kubectl -n argocd edit configmap argocd-cm

Make sure url is set:

data:
  url: https://argocd.maksonlee.com

Add OIDC config:

data:
  oidc.config: |
    name: Keycloak
    issuer: https://keycloak.maksonlee.com/realms/maksonlee.com
    clientID: argocd
    enablePKCEAuthentication: true
    requestedScopes: ["openid", "profile", "email", "groups"]

Save and exit.

If your Argo CD is behind an Ingress or reverse proxy, setting url: is important so redirects point back to the public hostname.

  1. Configure Argo CD RBAC mapping in argocd-rbac-cm

Edit:

kubectl -n argocd edit configmap argocd-rbac-cm

Use this RBAC config:

data:
  policy.csv: |
    g, argocd-admins, role:admin
    g, argocd-readonly, role:readonly
  policy.default: role:readonly
  scopes: '[groups]'

What this does:

  • If a user is in Keycloak group argocd-admins, they become Argo CD admin
  • If a user is in Keycloak group argocd-readonly, they become Argo CD readonly
  • If a user is in any other groups (or no group), they still get readonly because of policy.default: role:readonly
  1. Restart Argo CD server

Restart to apply changes:

kubectl -n argocd rollout restart deploy/argocd-server
kubectl -n argocd rollout status deploy/argocd-server

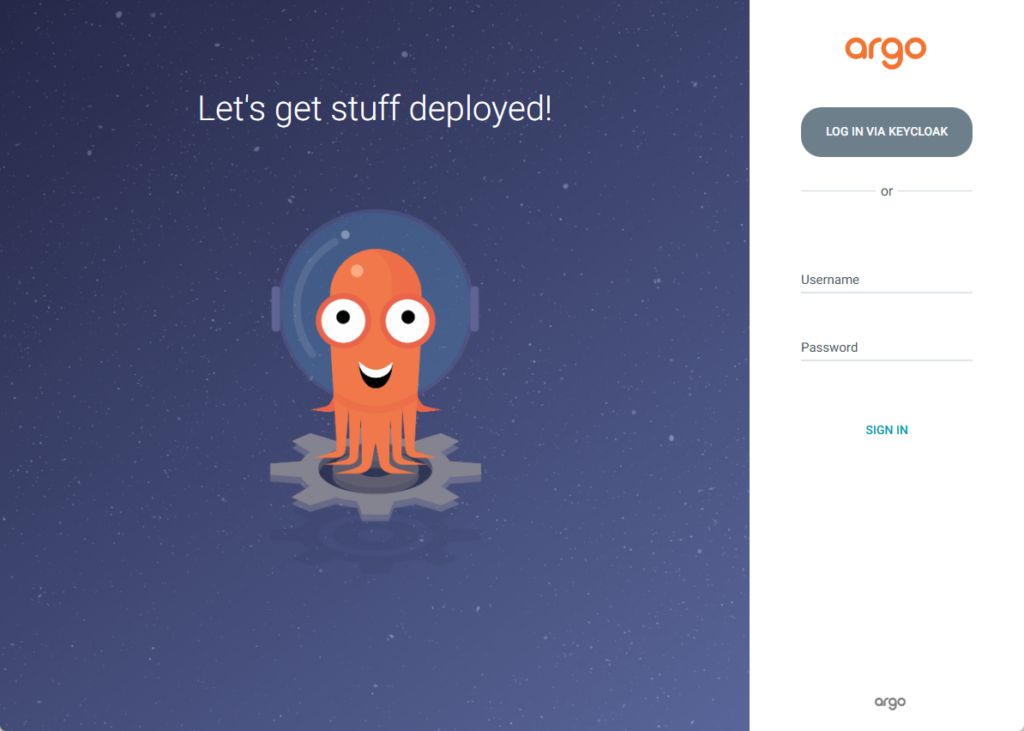

  1. Test SSO login

Open:

  • https://argocd.maksonlee.com

Click the Keycloak SSO login and sign in.

  1. CLI SSO from an SSH session (remote host)

In my lab, I run the Argo CD CLI on a remote host (k8s-1) over SSH, but I complete Keycloak login in my local browser. The important detail is:

  • argocd login --sso starts a local callback listener on the machine running the CLI (remote host).
  • Keycloak redirects to http://localhost:<port>/auth/callback.
  • When you are SSH’ed into a remote host, your browser’s localhost is your laptop, so you must use SSH local port forwarding as part of the normal login procedure.

SSH with local port forwarding (keep it open)

From your laptop/workstation:

ssh -L 8085:127.0.0.1:8085 ubuntu@k8s-1.maksonlee.com

This forwards:

your laptop localhost:8085 → remote host localhost:8085

Run argocd login --sso on the remote host

Inside the SSH session (on k8s-1):

argocd login argocd.maksonlee.com \
  --sso --grpc-web \
  --sso-launch-browser=false \
  --sso-port 8085

You will see output like this (note the redirect_uri=http://localhost:8085/auth/callback):

Performing authorization_code flow login: https://keycloak.maksonlee.com/...&redirect_uri=http%3A%2F%2Flocalhost%3A8085%2Fauth%2Fcallback...
To authenticate, copy-and-paste the following URL into your preferred browser: https://keycloak.maksonlee.com/realms/...

Open the printed URL in your local browser

Copy the URL from the SSH terminal and paste it into your laptop browser.

After you sign in to Keycloak, the browser redirects to:

http://localhost:8085/auth/callback?…

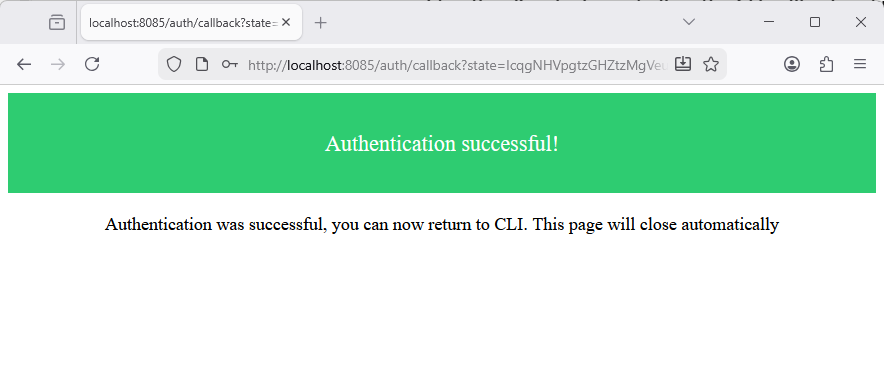

Because of the SSH -L tunnel, this request reaches the remote CLI listener, and you will see a success confirmation page.

Confirm the CLI completed login

Back in the SSH terminal, you should see:

Authentication successful
'maksonlee@maksonlee.com' logged in successfully
Context 'argocd.maksonlee.com' updated
