Build an Artifactory Browser tab in Backstage

By /

This guide shows how to add an Artifactory-powered “Artifacts” tab to Backstage entities. The tab displays a folder tree on the left, a details table on the right, and opens downloads in a new browser tab (so Artifactory can handle authentication).

What you’ll build

For any Backstage entity that has these annotations:

  • jfrog.io/artifactory-repo (required)
  • jfrog.io/artifactory-path (optional)

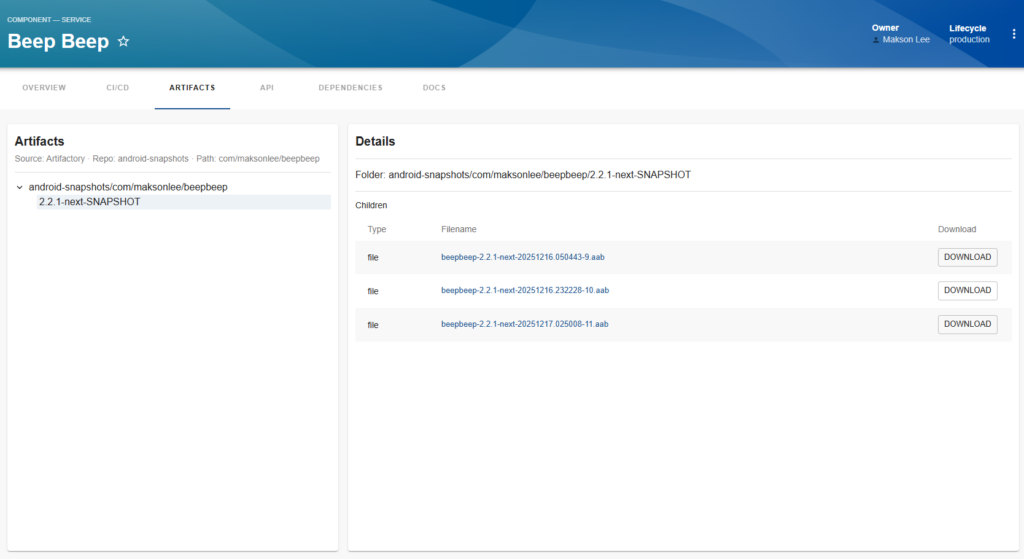

Backstage will show:

  • A new entity tab: Artifacts
  • Left: expandable folder tree
  • Right: “Children” table (Type / Filename / Download)
  • Download opens a new tab (window.open(..., "_blank"))

Prerequisites

  • Backstage app repo (monorepo)
  • JFrog Artifactory reachable from the Backstage backend
  • An Artifactory Identity Token (recommended) or another Artifactory auth method

Note about security: the Backstage proxy will send the token to Artifactory server-side. That means any Backstage user who can access the proxy endpoint can effectively browse Artifactory as that token user, unless you add access control.

  1. Create a new Backstage plugin

From your Backstage repo root:

yarn new --select plugin
# name: artifactory-browser

This guide uses an entity page content component rather than a standalone routable page.

  1. Create an Artifactory Identity Token

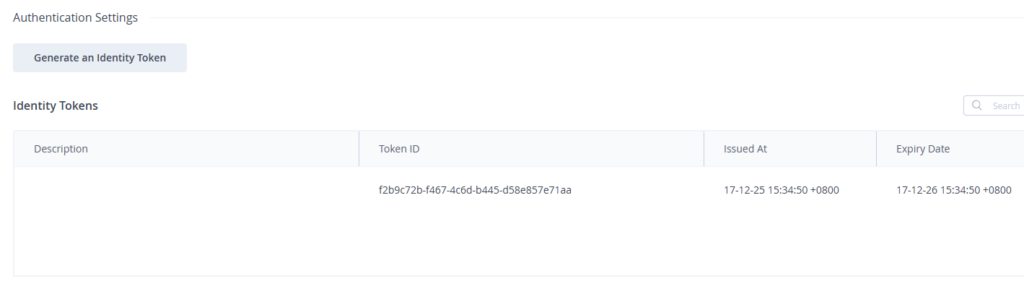

In Artifactory UI:

  • Go to User Profile → Identity Tokens
  • Click Generate an Identity Token
  • Copy the token value (you only see the full token once)

The Token ID is not the secret; you need the token value.

  1. Configure the Backstage proxy for Artifactory

Edit app-config.production.yaml (or the config you actually run with), and add:

proxy:
  endpoints:
    "/artifactory":
      target: https://artifactory.maksonlee.com/artifactory
      changeOrigin: true
      headers:
        Authorization: ${ARTIFACTORY_AUTH_HEADER}

Set the environment variable using Bearer format:

export ARTIFACTORY_AUTH_HEADER="Bearer <YOUR_IDENTITY_TOKEN_VALUE>"

Quick connectivity test

curl -sS -H "Authorization: Bearer <TOKEN>" \
  https://artifactory.maksonlee.com/artifactory/api/system/ping
  1. Add a small frontend API client

Create: plugins/artifactory-browser/src/api.ts

import {
  createApiRef,
  DiscoveryApi,
  FetchApi,
} from '@backstage/core-plugin-api';

export type ArtifactoryChild = {
  uri: string; // e.g. "/2.2.1-next-SNAPSHOT"
  folder: boolean | string; // some installs return boolean, some return "true"/"false"
};

export type ArtifactoryFolderInfo = {
  repo: string;
  path: string; // e.g. "/com/acme/app"
  children?: ArtifactoryChild[];
  created?: string;
  createdBy?: string;
  lastModified?: string;
  modifiedBy?: string;
  lastUpdated?: string;
};

export type ArtifactoryFileInfo = {
  repo: string;
  path: string; // e.g. "/com/acme/app/file.txt"
  downloadUri: string;
  created?: string;
  createdBy?: string;
  lastModified?: string;
  modifiedBy?: string;
  lastUpdated?: string;
  size?: string;
  mimeType?: string;
  checksums?: {
    md5?: string;
    sha1?: string;
    sha256?: string;
  };
};

export interface ArtifactoryBrowserApi {
  getFolderInfo(
    repo: string,
    folderPath: string,
  ): Promise<ArtifactoryFolderInfo>;
  getFileInfo(repo: string, filePath: string): Promise<ArtifactoryFileInfo>;
}

export const artifactoryBrowserApiRef = createApiRef<ArtifactoryBrowserApi>({
  id: 'plugin.artifactory-browser.service',
});

function normalizePath(p: string) {
  const trimmed = (p ?? '').trim();
  return trimmed.replace(/^\/+/, '').replace(/\/+$/, '');
}

function encodePath(p: string) {
  const norm = normalizePath(p);
  if (!norm) return '';
  return norm.split('/').map(encodeURIComponent).join('/');
}

export class ArtifactoryBrowserClient implements ArtifactoryBrowserApi {
  constructor(
    private readonly deps: { discoveryApi: DiscoveryApi; fetchApi: FetchApi },
  ) {}

  private async proxyBase() {
    // -> https://backstage.../api/proxy
    return this.deps.discoveryApi.getBaseUrl('proxy');
  }

  async getFolderInfo(repo: string, folderPath: string) {
    const base = await this.proxyBase();
    const full = encodePath(folderPath);

    const url =
      full.length > 0
        ? `${base}/artifactory/api/storage/${encodeURIComponent(repo)}/${full}`
        : `${base}/artifactory/api/storage/${encodeURIComponent(repo)}`;

    const resp = await this.deps.fetchApi.fetch(url);
    if (!resp.ok) {
      throw new Error(`FolderInfo failed: ${resp.status} ${await resp.text()}`);
    }
    return (await resp.json()) as ArtifactoryFolderInfo;
  }

  async getFileInfo(repo: string, filePath: string) {
    const base = await this.proxyBase();
    const full = encodePath(filePath);

    const url = `${base}/artifactory/api/storage/${encodeURIComponent(
      repo,
    )}/${full}`;

    const resp = await this.deps.fetchApi.fetch(url);
    if (!resp.ok) {
      throw new Error(`FileInfo failed: ${resp.status} ${await resp.text()}`);
    }
    return (await resp.json()) as ArtifactoryFileInfo;
  }
}
  1. Build the UI: tree on the left, file list on the right

Create:

plugins/artifactory-browser/src/components/EntityArtifactoryBrowserContent/EntityArtifactoryBrowserContent.tsx

import { useCallback, useEffect, useMemo, useState } from 'react';
import { useApi } from '@backstage/core-plugin-api';
import { useEntity } from '@backstage/plugin-catalog-react';
import { EmptyState, ErrorPanel, Progress } from '@backstage/core-components';

import {
  Grid,
  Paper,
  Typography,
  Divider,
  Button,
  Table,
  TableHead,
  TableRow,
  TableCell,
  TableBody,
} from '@material-ui/core';
import { TreeView, TreeItem } from '@material-ui/lab';
import ExpandMoreIcon from '@material-ui/icons/ExpandMore';
import ChevronRightIcon from '@material-ui/icons/ChevronRight';

import {
  artifactoryBrowserApiRef,
  ArtifactoryFolderInfo,
  ArtifactoryFileInfo,
} from '../../api';

type NodeKind = 'folder' | 'file';

type NodeState = {
  kind: NodeKind;
  loaded: boolean;
  children?: Array<{ name: string; kind: NodeKind; fullPath: string }>;
};

const LOADING_SUFFIX = '::__loading';

const isFolderChild = (folder: boolean | string) =>
  folder === true || folder === 'true';

function joinPath(parent: string, childUri: string) {
  const child = childUri.replace(/^\/+/, '');
  const p = (parent ?? '').replace(/^\/+/, '').replace(/\/+$/, '');
  return p ? `${p}/${child}` : child;
}

export const EntityArtifactoryBrowserContent = () => {
  const api = useApi(artifactoryBrowserApiRef);
  const { entity } = useEntity();

  const repo = entity.metadata.annotations?.['jfrog.io/artifactory-repo'] ?? '';
  const rootPath =
    entity.metadata.annotations?.['jfrog.io/artifactory-path'] ?? '';

  // TreeView nodeId should not be empty string
  const ROOT_ID = '__root__';
  const rootNodeId = useMemo(() => (rootPath ? rootPath : ROOT_ID), [rootPath]);

  const nodeIdToPath = useCallback(
    (nodeId: string) => (nodeId === ROOT_ID ? '' : nodeId),
    [],
  );

  const [nodes, setNodes] = useState<Record<string, NodeState>>({
    [rootNodeId]: { kind: 'folder', loaded: false },
  });

  const [expanded, setExpanded] = useState<string[]>([rootNodeId]);
  const [selected, setSelected] = useState<string>(rootNodeId);

  const [loading, setLoading] = useState(false);
  const [err, setErr] = useState<Error | undefined>(undefined);

  const [folderInfo, setFolderInfo] = useState<
    ArtifactoryFolderInfo | undefined
  >(undefined);
  const [fileInfo, setFileInfo] = useState<ArtifactoryFileInfo | undefined>(
    undefined,
  );

  const ensureFolderLoaded = useCallback(
    async (folderNodeId: string) => {
      if (String(folderNodeId).endsWith(LOADING_SUFFIX)) return;

      const cur = nodes[folderNodeId];
      if (cur?.kind === 'folder' && cur.loaded) return;

      const folderPath = nodeIdToPath(folderNodeId);
      const info = await api.getFolderInfo(repo, folderPath);

      const children = (info.children ?? []).map(c => {
        const kind: NodeKind = isFolderChild(c.folder) ? 'folder' : 'file';
        const fullPath = joinPath(folderPath, c.uri); // actual path (no leading slash)
        const childNodeId = fullPath === '' ? ROOT_ID : fullPath;
        return { name: c.uri.replace(/^\/+/, ''), kind, fullPath: childNodeId };
      });

      // folders first, then files, alphabetical
      children.sort((a, b) => {
        if (a.kind !== b.kind) return a.kind === 'folder' ? -1 : 1;
        return a.name.localeCompare(b.name);
      });

      setNodes(prev => {
        const next: Record<string, NodeState> = { ...prev };

        next[folderNodeId] = { kind: 'folder', loaded: true, children };

        for (const ch of children) {
          if (!next[ch.fullPath]) {
            next[ch.fullPath] = { kind: ch.kind, loaded: ch.kind === 'file' };
          }
        }

        return next;
      });
    },
    [api, repo, nodes, nodeIdToPath, ROOT_ID],
  );

  const loadSelectionDetails = useCallback(
    async (nodeId: string) => {
      if (String(nodeId).endsWith(LOADING_SUFFIX)) return;

      setErr(undefined);
      setLoading(true);
      setFolderInfo(undefined);
      setFileInfo(undefined);

      try {
        const kind = nodes[nodeId]?.kind ?? 'folder';
        const path = nodeIdToPath(nodeId);

        if (kind === 'folder') {
          const info = await api.getFolderInfo(repo, path);
          setFolderInfo(info);
          await ensureFolderLoaded(nodeId);
        } else {
          const info = await api.getFileInfo(repo, path);
          setFileInfo(info);
        }
      } catch (e: any) {
        setErr(e instanceof Error ? e : new Error(String(e)));
      } finally {
        setLoading(false);
      }
    },
    [api, repo, nodes, ensureFolderLoaded, nodeIdToPath],
  );

  const openNode = useCallback(
    (nodeId: string, kind: NodeKind) => {
      setSelected(nodeId);

      if (kind === 'folder') {
        setExpanded(prev => (prev.includes(nodeId) ? prev : [...prev, nodeId]));
      }

      loadSelectionDetails(nodeId);
    },
    [loadSelectionDetails],
  );

  const handleDownload = useCallback(
    async (fileNodeId: string) => {
      setErr(undefined);
      setLoading(true);
      try {
        const path = nodeIdToPath(fileNodeId);
        const info = await api.getFileInfo(repo, path);

        // Open Artifactory download URL in a new tab
        window.open(info.downloadUri, '_blank', 'noopener,noreferrer');
      } catch (e: any) {
        setErr(e instanceof Error ? e : new Error(String(e)));
      } finally {
        setLoading(false);
      }
    },
    [api, repo, nodeIdToPath],
  );

  useEffect(() => {
    if (!repo) return;
    loadSelectionDetails(rootNodeId);
    // eslint-disable-next-line react-hooks/exhaustive-deps
  }, [repo, rootNodeId]);

  const onToggle = async (_event: any, nodeIds: string[]) => {
    const filtered = nodeIds.filter(id => !String(id).endsWith(LOADING_SUFFIX));
    setExpanded(filtered);

    const newlyExpanded = filtered.filter(
      id => (nodes[id]?.kind ?? 'folder') === 'folder' && !nodes[id]?.loaded,
    );
    if (newlyExpanded.length === 0) return;

    setErr(undefined);
    setLoading(true);
    try {
      for (const id of newlyExpanded) {
        await ensureFolderLoaded(id);
      }
    } catch (e: any) {
      setErr(e instanceof Error ? e : new Error(String(e)));
    } finally {
      setLoading(false);
    }
  };

  const onSelect = async (_event: any, nodeId: string) => {
    if (String(nodeId).endsWith(LOADING_SUFFIX)) return;
    setSelected(nodeId);
    await loadSelectionDetails(nodeId);
  };

  const renderTree = (nodeId: string) => {
    const node = nodes[nodeId];

    const label =
      nodeId === rootNodeId
        ? rootPath
          ? `${repo}/${rootPath}`
          : repo
        : nodeId.split('/').slice(-1)[0];

    if (!node) {
      return (
        <TreeItem key={nodeId} nodeId={nodeId} label={label}>
          <TreeItem nodeId={`${nodeId}${LOADING_SUFFIX}`} label="Loading..." />
        </TreeItem>
      );
    }

    if (node.kind === 'file') {
      return <TreeItem key={nodeId} nodeId={nodeId} label={label} />;
    }

    const folderChildren = (node.children ?? []).filter(
      c => c.kind === 'folder',
    );

    return (
      <TreeItem key={nodeId} nodeId={nodeId} label={label}>
        {node.loaded ? (
          folderChildren.length > 0 ? (
            folderChildren.map(c => renderTree(c.fullPath))
          ) : null
        ) : (
          <TreeItem nodeId={`${nodeId}${LOADING_SUFFIX}`} label="Loading..." />
        )}
      </TreeItem>
    );
  };

  if (!repo) {
    return (
      <EmptyState
        title="Artifactory is not configured for this entity"
        description="Add annotations: jfrog.io/artifactory-repo and (optional) jfrog.io/artifactory-path"
        missing="info"
      />
    );
  }

  const children = nodes[selected]?.children ?? [];

  return (
    <Grid container spacing={2}>
      <Grid item xs={4}>
        <Paper style={{ padding: 12, height: '70vh', overflow: 'auto' }}>
          <Typography variant="h6">Artifacts</Typography>
          <Typography variant="body2" color="textSecondary">
            Source: Artifactory · Repo: {repo}
            {rootPath ? ` · Path: ${rootPath}` : ''}
          </Typography>
          <Divider style={{ margin: '12px 0' }} />

          <TreeView
            defaultCollapseIcon={<ExpandMoreIcon />}
            defaultExpandIcon={<ChevronRightIcon />}
            expanded={expanded}
            selected={selected}
            onNodeToggle={onToggle}
            onNodeSelect={onSelect}
          >
            {renderTree(rootNodeId)}
          </TreeView>
        </Paper>
      </Grid>

      <Grid item xs={8}>
        <Paper style={{ padding: 12, height: '70vh', overflow: 'auto' }}>
          <Typography variant="h6">Details</Typography>
          <Divider style={{ margin: '12px 0' }} />

          {loading && <Progress />}
          {err && <ErrorPanel error={err} />}

          {!loading && !err && folderInfo && (
            <>
              <Typography variant="subtitle1">
                Folder: {folderInfo.repo}
                {folderInfo.path}
              </Typography>

              <Divider style={{ margin: '12px 0' }} />

              <Typography variant="subtitle2" style={{ marginBottom: 8 }}>
                Children
              </Typography>

              <Table size="small">
                <TableHead>
                  <TableRow>
                    <TableCell style={{ width: 120 }}>Type</TableCell>
                    <TableCell>Filename</TableCell>
                    <TableCell style={{ width: 140 }}>Download</TableCell>
                  </TableRow>
                </TableHead>

                <TableBody>
                  {children.map(ch => (
                    <TableRow hover key={ch.fullPath}>
                      <TableCell>{ch.kind}</TableCell>

                      <TableCell>
                        <Button
                          color="primary"
                          size="small"
                          style={{
                            textTransform: 'none',
                            padding: 0,
                            minWidth: 0,
                          }}
                          onClick={() => openNode(ch.fullPath, ch.kind)}
                        >
                          {ch.name}
                        </Button>
                      </TableCell>

                      <TableCell>
                        {ch.kind === 'file' ? (
                          <Button
                            variant="outlined"
                            size="small"
                            onClick={() => handleDownload(ch.fullPath)}
                          >
                            Download
                          </Button>
                        ) : (
                          <span />
                        )}
                      </TableCell>
                    </TableRow>
                  ))}

                  {children.length === 0 && (
                    <TableRow>
                      <TableCell colSpan={3}>
                        <Typography variant="body2" color="textSecondary">
                          Empty folder
                        </Typography>
                      </TableCell>
                    </TableRow>
                  )}
                </TableBody>
              </Table>
            </>
          )}

          {!loading && !err && fileInfo && (
            <>
              <Typography variant="subtitle1">
                File: {fileInfo.repo}
                {fileInfo.path}
              </Typography>

              <Divider style={{ margin: '12px 0' }} />

              <Typography variant="body2">Size: {fileInfo.size ?? '—'}</Typography>
              <Typography variant="body2">MIME: {fileInfo.mimeType ?? '—'}</Typography>
              <Typography variant="body2">
                SHA256: {fileInfo.checksums?.sha256 ?? '—'}
              </Typography>

              <Divider style={{ margin: '12px 0' }} />

              <Button
                variant="contained"
                color="primary"
                onClick={() =>
                  window.open(fileInfo.downloadUri, '_blank', 'noopener,noreferrer')
                }
              >
                Download (via Artifactory)
              </Button>
            </>
          )}
        </Paper>
      </Grid>
    </Grid>
  );
};
  1. Export the plugin pieces

Update: plugins/artifactory-browser/src/index.ts

export { artifactoryBrowserApiRef, ArtifactoryBrowserClient } from './api';
export { EntityArtifactoryBrowserContent } from './components/EntityArtifactoryBrowserContent/EntityArtifactoryBrowserContent';

Update: plugins/artifactory-browser/src/plugin.ts

import { createPlugin } from '@backstage/core-plugin-api';

export const artifactoryBrowserPlugin = createPlugin({
  id: 'artifactory-browser',
});
  1. Register the API client in the Backstage app

Edit: packages/app/src/apis.ts

Add the imports:

import { fetchApiRef } from '@backstage/core-plugin-api';

import {
  artifactoryBrowserApiRef,
  ArtifactoryBrowserClient,
} from '@internal/backstage-plugin-artifactory-browser';

Add the API factory:

createApiFactory({
  api: artifactoryBrowserApiRef,
  deps: {
    discoveryApi: discoveryApiRef,
    fetchApi: fetchApiRef,
  },
  factory: ({ discoveryApi, fetchApi }) =>
    new ArtifactoryBrowserClient({ discoveryApi, fetchApi }),
}),
  1. Add the “Artifacts” tab to entity pages

Edit: packages/app/src/components/catalog/EntityPage.tsx

Add the import:

import { EntityArtifactoryBrowserContent } from '@internal/backstage-plugin-artifactory-browser';

Add a helper:

const isArtifactoryAvailable = (entity: any) =>
  Boolean(entity?.metadata?.annotations?.['jfrog.io/artifactory-repo']);

Then add a route to your entity layouts (service/website/default) in each place you want it:

<EntityLayout.Route
  path="/artifactory"
  title="Artifacts"
  if={isArtifactoryAvailable}
>
  <EntityArtifactoryBrowserContent />
</EntityLayout.Route>

You do not need a standalone app route like /artifactory-browser for this approach—this is meant to live inside the entity page.

  1. Annotate an entity to enable the tab

In the entity’s catalog-info.yaml (or wherever you define it), add:

apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: my-service
  annotations:
    jfrog.io/artifactory-repo: android-snapshots
    jfrog.io/artifactory-path: com/acme/my-service
spec:
  type: service
  owner: user:default/you
  • jfrog.io/artifactory-repo is required
  • jfrog.io/artifactory-path is optional (defaults to repo root)
  1. Run and verify

Start Backstage as you normally do (make sure ARTIFACTORY_AUTH_HEADER is set in the environment where the backend runs):

yarn --cwd packages/backend start \
  --config ../../app-config.yaml \
  --config ../../app-config.production.yaml

Go to your entity → Artifacts tab, then:

  • Expand folders in the left tree
  • Click a folder → file list appears on the right
  • Click Download → opens a new tab to Artifactory download URL

Did this guide save you time?

Support this site

Leave a Comment

Your email address will not be published. Required fields are marked *

Scroll to Top
