Add Jenkins CI/CD to Backstage (With Keycloak SSO, No Docker)

In previous posts,

I already have:

• Backstage running on Ubuntu 24.04 from source (no Docker) with Keycloak OIDC login
• Users & groups synced from LDAP (OpenDJ) into the Backstage catalog
• GitHub discovery so any repo under maksonlee with a catalog-info.yaml is auto-imported

Now I want Backstage to show Jenkins CI/CD status directly in the CI/CD tab of each component.

In this post I:

• Use a dedicated Jenkins user backstage with an API token
• Install the Jenkins plugin (frontend + backend) into my existing Backstage repo
• Configure Backstage to talk to https://jenkins.maksonlee.com
• Wire Jenkins into the CI/CD tab in EntityPage.tsx
• Create a Jenkins pipeline job android/beepbeep-master-ci for the Beep Beep Android app
• Annotate Beep Beep’s catalog-info.yaml so its Jenkins builds appear in Backstage
• Note a limitation: re-runs from Backstage are triggered as the backstage service account

No Docker. No Helm. Just editing the same Backstage repo from the earlier posts.

Environment

Backstage

• URL: https://backstage.maksonlee.com
• Host: Ubuntu Server 24.04
• Repo: ~/homelab-backstage
• Auth: Keycloak OIDC
• Users & groups: synced from LDAP
• GitHub discovery: imports repos under maksonlee with /catalog-info.yaml

In earlier posts I started the backend like this:

cd ~/homelab-backstage

GITHUB_TOKEN='xxx' \
NODE_ENV=production \
AUTH_SESSION_SECRET='xxx' \
AUTH_OIDC_CLIENT_ID='backstage' \
AUTH_OIDC_CLIENT_SECRET='xxx' \
LDAP_BIND_PASSWORD='xxx' \
yarn --cwd packages/backend start \
  --config ../../app-config.yaml \
  --config ../../app-config.production.yaml

In this post I’ll extend that command with Jenkins env vars, but only after all code and config changes are done.

Jenkins

• URL: https://jenkins.maksonlee.com
• Jenkins user used by Backstage: backstage
• Auth: API token for backstage

1. Jenkins service account backstage and API token

Backstage talks to Jenkins using a service account, not individual user logins.
I created a Jenkins user called backstage and gave it just enough permissions to:

• View the jobs I want to expose in Backstage
• Trigger builds for those jobs

Log in to Jenkins as the backstage user.

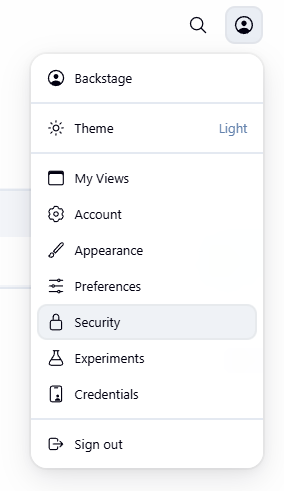

• Click the avatar in the top-right corner.
• In the dropdown, click Security.

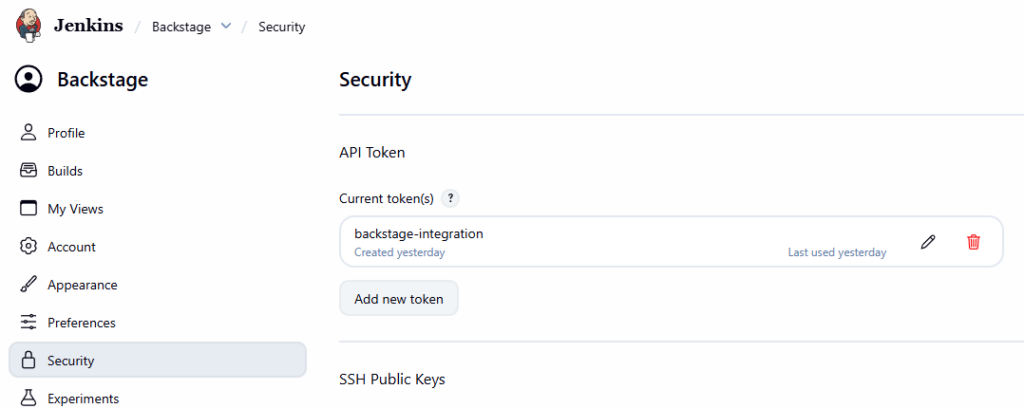

  You should see a page with sections like API Token, SSH Public Keys, Session Termination, and buttons for Save / Apply.
• In the API Token section:
  • Click Add new token.
  • Enter a name, e.g. backstage-integration.
  • Click Generate.
• Copy the token value once and store it in a password manager.

This token will become JENKINS_API_TOKEN for Backstage. I never commit it to Git.

2. Install Jenkins plugins in Backstage

From the Backstage repo:

cd ~/homelab-backstage

• Frontend plugin

yarn --cwd packages/app add @backstage-community/plugin-jenkins

• Backend plugin

yarn --cwd packages/backend add @backstage-community/plugin-jenkins-backend

These add Jenkins support to the existing app. No extra containers.

3. Register Jenkins backend module

Backend entrypoint: packages/backend/src/index.ts.

Before Jenkins, the tail of the file looked like this (simplified):

// kubernetes plugin
backend.add(import('@backstage/plugin-kubernetes-backend'));

// notifications and signals plugins
backend.add(import('@backstage/plugin-notifications-backend'));
backend.add(import('@backstage/plugin-signals-backend'));

backend.start();

I insert the Jenkins backend in the same style:

// kubernetes plugin
backend.add(import('@backstage/plugin-kubernetes-backend'));

// Jenkins CI/CD plugin
backend.add(import('@backstage-community/plugin-jenkins-backend'));

// notifications and signals plugins
backend.add(import('@backstage/plugin-notifications-backend'));
backend.add(import('@backstage/plugin-signals-backend'));

backend.start();

No new static imports are needed; everything is loaded through dynamic import().

4. Configure Jenkins in app-config.production.yaml

Next I give Backstage the Jenkins URL and credentials.

In app-config.production.yaml I add a top-level jenkins section:

app:
  baseUrl: https://backstage.maksonlee.com

backend:
  baseUrl: https://backstage.maksonlee.com
  listen: ':7007'
  database:
    client: better-sqlite3
    connection:
      directory: /var/lib/backstage/db

jenkins:
  instances:
    - name: default
      baseUrl: https://jenkins.maksonlee.com
      username: ${JENKINS_USERNAME}
      apiKey: ${JENKINS_API_TOKEN}
      projectCountLimit: 250
      # crumbIssuer: true    # enable if Jenkins requires CSRF crumbs

auth:
  environment: production
  session:
    secret: ${AUTH_SESSION_SECRET}
  providers:
    oidc:
      production:
        metadataUrl: https://keycloak.maksonlee.com/realms/maksonlee.com/.well-known/openid-configuration
        clientId: ${AUTH_OIDC_CLIENT_ID}
        clientSecret: ${AUTH_OIDC_CLIENT_SECRET}
        additionalScopes:
          - profile
          - email
        prompt: auto
        signIn:
          resolvers:
            - resolver: emailMatchingUserEntityProfileEmail

integrations:
  github:
    - host: github.com
      token: ${GITHUB_TOKEN}

catalog:
  # LDAP + GitHub providers from earlier posts…

I keep JENKINS_USERNAME and JENKINS_API_TOKEN out of the file itself; they’re read from environment variables.

5. Wire Jenkins into the CI/CD tab (EntityPage.tsx)

The entity layout lives in packages/app/src/components/catalog/EntityPage.tsx.

• Add Jenkins imports

At the top of the file I already had:

import {
  EntityKubernetesContent,
  isKubernetesAvailable,
} from '@backstage/plugin-kubernetes';

I add:

import {
  EntityJenkinsContent,
  isJenkinsAvailable,
} from '@backstage-community/plugin-jenkins';

• Replace cicdContent

Previously the CI/CD tab just showed “No CI/CD available for this entity”.

I replace that block with Jenkins support plus a fallback:

const cicdContent = (
  <EntitySwitch>
    {/* Jenkins: show builds when jenkins.io/job-full-name is present */}
    <EntitySwitch.Case if={isJenkinsAvailable}>
      <EntityJenkinsContent />
    </EntitySwitch.Case>

    {/* Fallback: no CI/CD annotation */}
    <EntitySwitch.Case>
      <EmptyState
        title="No CI/CD available for this entity"
        missing="info"
        description="To enable CI/CD for this component, configure a Jenkins job and add the jenkins.io/job-full-name annotation to its catalog-info.yaml."
        action={
          <Button
            variant="contained"
            color="primary"
            href="https://backstage.io/docs/features/software-catalog/well-known-annotations"
          >
            Read more
          </Button>
        }
      />
    </EntitySwitch.Case>
  </EntitySwitch>
);

My service and website layouts already had:

<EntityLayout.Route path="/ci-cd" title="CI/CD">
  {cicdContent}
</EntityLayout.Route>

so the CI/CD tab automatically becomes a Jenkins view whenever isJenkinsAvailable is true.

6. Create Jenkins job android/beepbeep-master-ci

Backstage doesn’t care how complex the job is; it just needs a Jenkins job whose path matches the annotation. For Beep Beep I want a simple CI pipeline that:

• Builds on every push to master

Job naming

I use this naming pattern:

• Folder: android
• Job name: beepbeep-master-ci

So the full Jenkins path is:

android/beepbeep-master-ci

Meaning:

• android → platform
• beepbeep → app
• master → branch
• ci → continuous integration

What the job actually does

At a high level, the job:

• Pulls source from the maksonlee/beepbeep repo
• Tracks the master branch
• Uses a Jenkinsfile in the repo root to define the pipeline (checkout, tests, build, artifacts)

How you configure this in Jenkins (Pipeline from SCM vs Multibranch, exact Jenkinsfile content) doesn’t matter for Backstage, as long as:

• The job is reachable at android/beepbeep-master-ci, and
• It has builds.

7. Annotate the Beep Beep component

Backstage needs to know which Jenkins job builds which component.
The annotation for that is:

jenkins.io/job-full-name: <folder>/<job>

For Beep Beep, my catalog-info.yaml in the repo looks like this:

apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: beepbeep
  title: Beep Beep
  description: Minimal periodic reminder app with time-based sounds and quiet hours.
  annotations:
    github.com/project-slug: maksonlee/beepbeep
    jenkins.io/job-full-name: android/beepbeep-master-ci
spec:
  type: service
  owner: user:default/maksonlee
  lifecycle: production

I commit and push this to GitHub.

Because GitHub discovery is already configured, Backstage automatically re-reads the catalog-info.yaml from the repo. I can also click the Refresh icon on the Beep Beep entity page to reload it immediately.

8. Start / restart Backstage with Jenkins env vars

After all code and config changes are done, I start (or restart) the backend with Jenkins credentials included.

From ~/homelab-backstage:

cd ~/homelab-backstage

GITHUB_TOKEN='xxx' \
NODE_ENV=production \
AUTH_SESSION_SECRET='xxx' \
AUTH_OIDC_CLIENT_ID='backstage' \
AUTH_OIDC_CLIENT_SECRET='xxx' \
LDAP_BIND_PASSWORD='xxx' \
JENKINS_USERNAME='backstage' \
JENKINS_API_TOKEN='your-jenkins-api-token' \
yarn --cwd packages/backend start \
  --config ../../app-config.yaml \
  --config ../../app-config.production.yaml

On startup I expect logs like:

"Plugin initialization started: 'app', 'proxy', 'scaffolder', 'techdocs', 'auth', 'catalog', 'permission', 'search', 'kubernetes', 'jenkins', 'notifications', 'signals'"
"Initializing Jenkins backend","plugin":"jenkins","service":"backstage"
"Serving static app content from /home/administrator/homelab-backstage/packages/app/dist","plugin":"app","service":"backstage"

which confirms Jenkins config and plugin are both wired correctly.

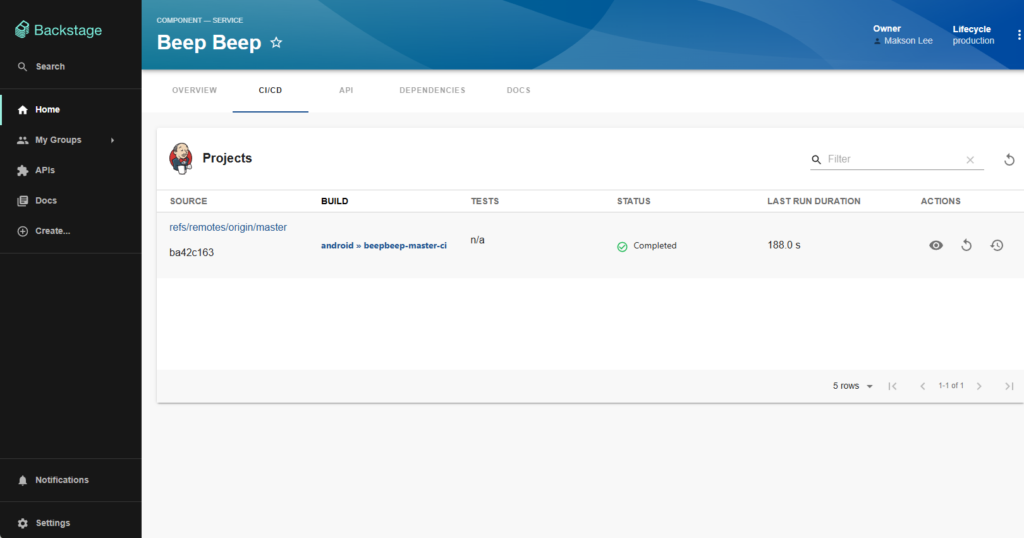

9. Verify in Backstage

With everything wired:

• Make sure android/beepbeep-master-ci has at least one build in Jenkins.
• Open https://backstage.maksonlee.com.
• Go to Catalog → Beep Beep (component:default/beepbeep).
• Click the CI/CD tab.

Expected result:

• A list of recent Jenkins builds for android/beepbeep-master-ci
• Status, build number, commit, author, timestamps
• Links back to Jenkins

10. Limitation: builds are triggered as backstage (service account)

Important detail: all Jenkins calls from Backstage use the credentials defined in the jenkins.instances section:

jenkins:
  instances:
    - name: default
      baseUrl: https://jenkins.maksonlee.com
      username: ${JENKINS_USERNAME}   # backstage
      apiKey: ${JENKINS_API_TOKEN}

That means:

• When a user clicks Re-run in the Backstage CI/CD tab, the build in Jenkins is started as user backstage, not as the real human (e.g. maksonlee).
• Jenkins will log something like: “Started by remote user backstage”.

Backstage itself knows which Keycloak user clicked the button, but that identity is not propagated into Jenkins by default. The plugin is built around a service account model.
